Advances in laboratory research keep accelerating with new techniques and technologies changing the way laboratory researchers perform experiments and make discoveries. These changes have made it more important than ever for lab architects and lab managers to keep flexibility in mind when planning new laboratory construction or renovations.

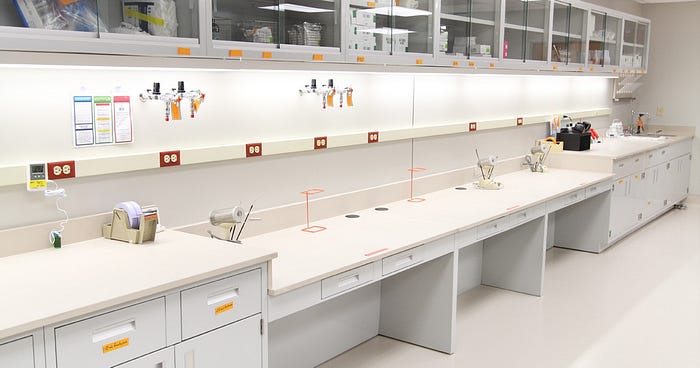

Food & Diagnostics Laboratory

Major advances in the capabilities of scientific lab equipment, digital computing, and experimental research methods and techniques have had a significant impact on the physical design, layout, and safety considerations for lab safety and design. As a result, modern laboratory design has to be flexible and functional to keep up.

This applies to both of the two traditional lab design categories: Wet Labs and Dry Labs.

Wet Lab Design Considerations

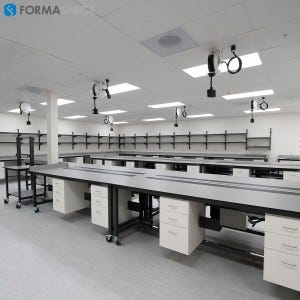

Ariosa Modular Wet Lab Installation

Even though scientific equipment has advanced, the importance of wet labs has not fundamentally changed. These types of labs handle a range of biological specimens, chemicals, drugs, and other materials for use in experiments. In order to support scientific research effectively and safely, wet labs need a range of tools, equipment, and services at hand, such as:

  • Lab bench countertops and sinks which can be cleaned easily and are resistant to bacteria and chemicals
  • Piped in hot and cold water, often including reverse osmosis (RO) or deionized water
  • Chemical fume hoods and biosafety cabinets (BSCs)
  • Facilities for handling live test specimens (animal housing aka vivariums) or proximity to clinics for human subjects
  • Specialized refrigerators and freezers for storing tissue and other specimens
  • Controlled environment areas (warm or cold rooms)
  • Autoclaves and other sterilization equipment
  • Glass washing and drying area
  • Piped in compressed air and vacuum as well as a range of other gasses like natural gas, oxygen, etc.
  • Radioactive work area for radiological materials, including safe storage facilities
  • Safety showers, eye wash stations, and hand washing stations
  • Climate control of ambient air and ventilation (HVAC)
  • Vibration controls for sensitive experiments, such as DNA sequencing.
  • Drain, Waste, and Vent (DWV) services

Dry Lab Design Considerations

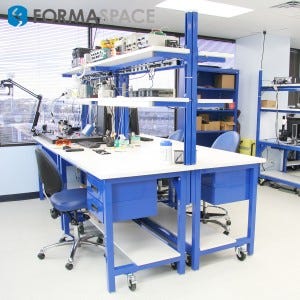

Back to Back Testing Workbenches

As computers and digital instruments have become more and more central to scientific research, the role of most dry labs has expanded from providing a space for working with dry stored chemicals to a lab space populated with a network of powerful computing systems. There is a light-hearted description for this shift toward computer-based research: while wet labs (working with chemicals and live specimens) make discoveries in vitro, the dry lab discoveries are made in silica using computer software.

Dry laboratory spaces will have fewer requirements for piped services than wet labs. But that doesn’t mean they don’t have their own unique requirements. Increasingly, dry labs need these types of services:

  • Extensive cooling and humidity controls to support computer labs (HVAC)
  • Clean power systems for sensitive computers, research instruments, and network communications
  • Occassional clean room system installations are required for certain processes and experiments
  • Vibration controls for sensitive instruments that need to maintain calibration
  • Fire suppression systems

What Kinds of Scientific Activities Take Place in Modern Research Laboratories?

To help visualize the different types of activities taking place in wet labs versus dry labs, here is a breakdown of the different types of activities taking place in each one:

Wet Lab Examples

Biomedical Laboratories

  • Anaerobic Chamber Labs
  • Cell Biology Labs
  • Fermenter Labs
  • Molecular Biology Labs
  • Pathology Labs
  • Tissue Culture Labs

Chemistry Laboratories

  • Organic Chemistry Labs
  • Physical Chemistry Labs

Dry Lab Examples

(Note: samples for study are often prepared in adjacent wet labs)

Instrument and Special Function Labs

  • Computer Labs (Mainframe, Workstation, and PCs)
  • Confocal Microscope Labs
  • Electromagnetic Instrument Labs
  • Electron Microscope (EM) Labs
  • Electrophysiology and Biophysics Labs
  • Flow Cytometry Labs
  • Laser Labs
  • Mass Spectrophotometry (MS) Labs
  • Robotic Equipment Labs
  • X-Ray Crystallography Labs
